Modeling Existing Infrastructure for Improvement Planning

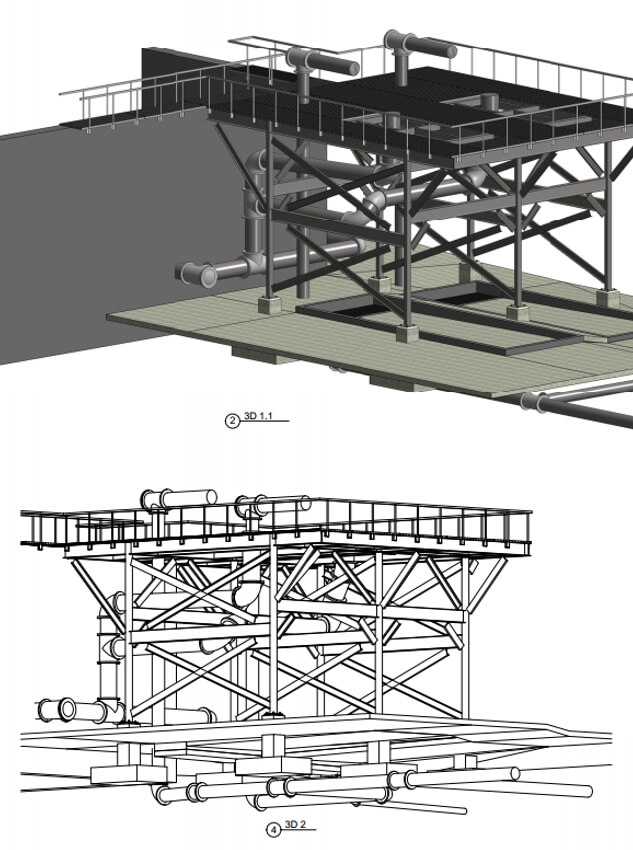

Replacing equipment at water treatment facilities requries exacting precision. Pipe connections have very limited tolerances, and new machinery needs to be compatible with existing structures. For this project, 2D CAD models were recreated in a 3D BIM environment and locations of critical connections verified with a LiDAR point cloud. Performing this work before the design phase ensures that no conflicts appear in the field.
